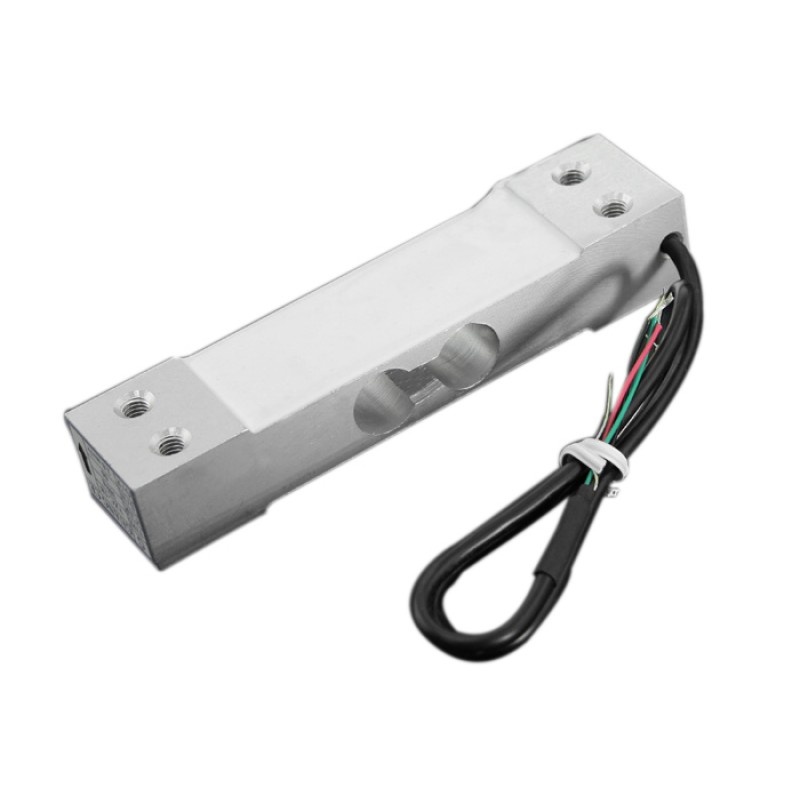

40kg Load Cell
Description
- Weight sensor (Load cell) 0-40kg
- Rated output(MV/V): 2.0c2±0.15
- Accuracy class: C2
- Capacity: 40kg
40kg Load Cell
Description
- Weight sensor (Load cell) 0-40kg
- Rated output(MV/V): 2.0c2±0.15
- Accuracy class: C2
- Capacity: 40kg
The 40 kg Load Cell is applicable to electronic scale, price computering scale, electronic platform scale, digital scale; parcel post scale, electronic balance and all varieties of commercial scales by single load cell.
Specifications
- Maximum number of laod cell verification intervals(N max): 2000
- Minimum number of laod cell verification intervals(Vmin): EMax/5000
- Combined erro(%RO): <±0.030
- Creep(%RO/30min): 0.03
- Temperature effect on sensitivity(%RO/°C): 0.0016
- Temperature effect on zero(%RO/°C): 0.003
- Zero balance(%RO): 1.0
- Input resistance(O): 402±6
- Output resistance(O): 350±3
- Insulation resistance(MO<50V>): 5000
- Recommended excitation voltage(V): 10~15
- Compensated temperature range(°C): -10~+40
- Operating temperature range(°C): -35~+80
- Safe overload(%RO): 150
- Ultimate overload(%RO): 200
- Load cell material: Aluminium
- Connecting cable: ø4.2x350mm
- Method of connecting wire: Red(+),Black(-),Green(+),White(-)
Dimensions
- Plafform size: 350x350mm
- Weight: 192 g
