GY-86

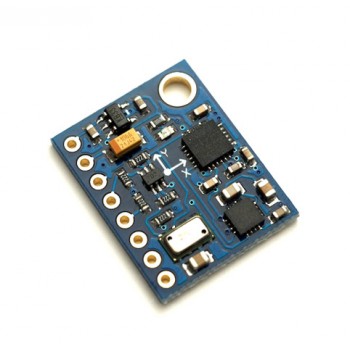

This is the new FreeIMU V.043 - 10DOF sensor array and Motion Processing Unit in a small unit with the latest sensors.
GY-86
ماژول IMU ده محوره (10DOF MS5611 HMC5883L MPU6050)
This is the new FreeIMU V.043 - 10DOF sensor array and Motion Processing Unit in a small unit with the latest sensors.
V 0.43 Features the MPU6050 6axis gyro/accel and Motion processing unit from Invensense, as well as the MS5611 High precision 24bit altimeter.
Sensors:
MPU6050 6 axis gyro/accel with Motion Processing Unit (MPU)
HMC5883L 3-axis magnetometer (Compass)
MS5611-01BA01 24-bit Highprecision altimeter
Size: 21*22mm, Weight: 2.5 grams
Operation is pure I2C and accel, gyro and magnetometer interrupt pins are available!
Power is supplied by an onboard 3.3V low-noise LDO that can be fed with 3.6 - 6.5V.
i2c operation is at 3.3 volts, so you need to disable internal pullups for AVR and Arduino use, or use a Logic Level Converter!
http://www.varesano.net/projects/hardware/FreeIMU
