2.4" TFT LCD Touch Shield for Arduino

• Arduino UNO Rev3 / Mega Shield compatible footprint
• Can work with both 3.3V and 5V
• Can dispaly on Chipkit UNO32 and Simplecortex as well
• Backlight : LED

 Needs modification to clear the USB-B connector on Arduino UNO

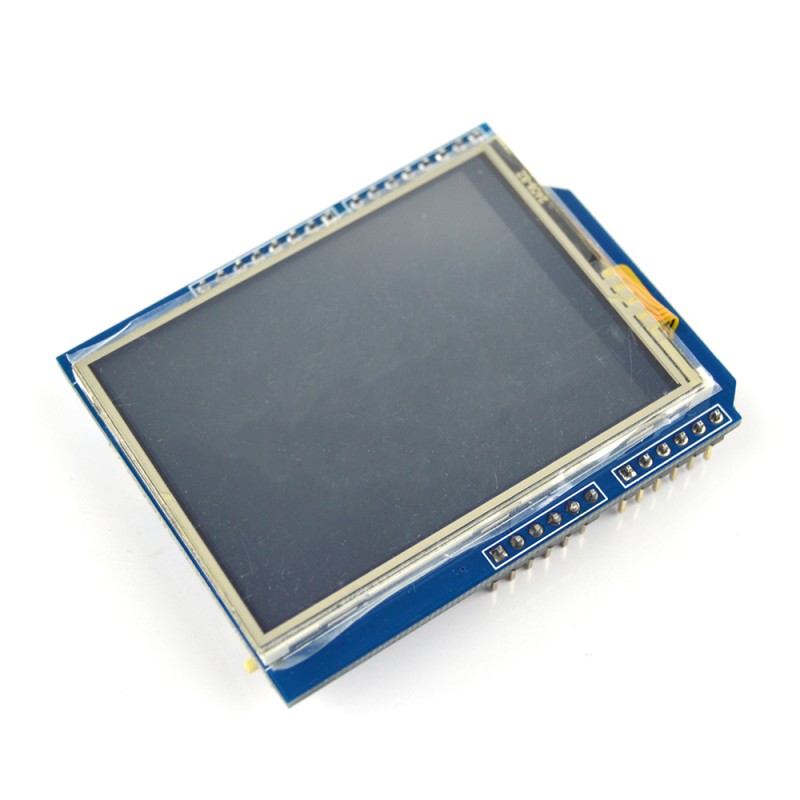

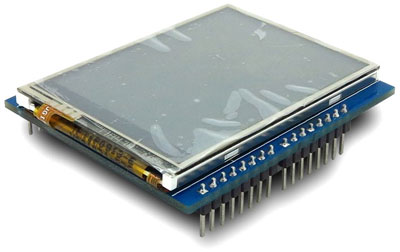

The 2.4'' TFT LCD Touch Shield for Arduino is an Arduino UNO/ Mega compatible multicolored TFT display with touch-screen and SD card socket. The TFT driver is based on S6D112 with 8bit data and 4bit control interface. The Arduino 2.4'' TFT LCD Touch shield can work with both 3.3V and 5V, so it can dispaly on Chipkit UNO32 and Simplecortex as well.

Features
• Arduino UNO Rev3 / Mega Shield compatible footprint
• Arduino library UTFT support
• TFT Resolution: 240 x 320 pixels
• Size: 2.4"
• Colors: 262K
