Arduino Nano 7-12V, 2A Dual Motor Controller



Dual full H-Bridge driver with PWM control
2Amps per motor, 24VDC maximum motor voltage
Large high quality decoupling capacitors
Arduino Nano is not included

Arduino Nano 7-12V, 2A Dual Motor Controller

Description



Dual full H-Bridge driver with PWM control
2Amps per motor, 24VDC maximum motor voltage
Large high quality decoupling capacitors
Arduino Nano is not included

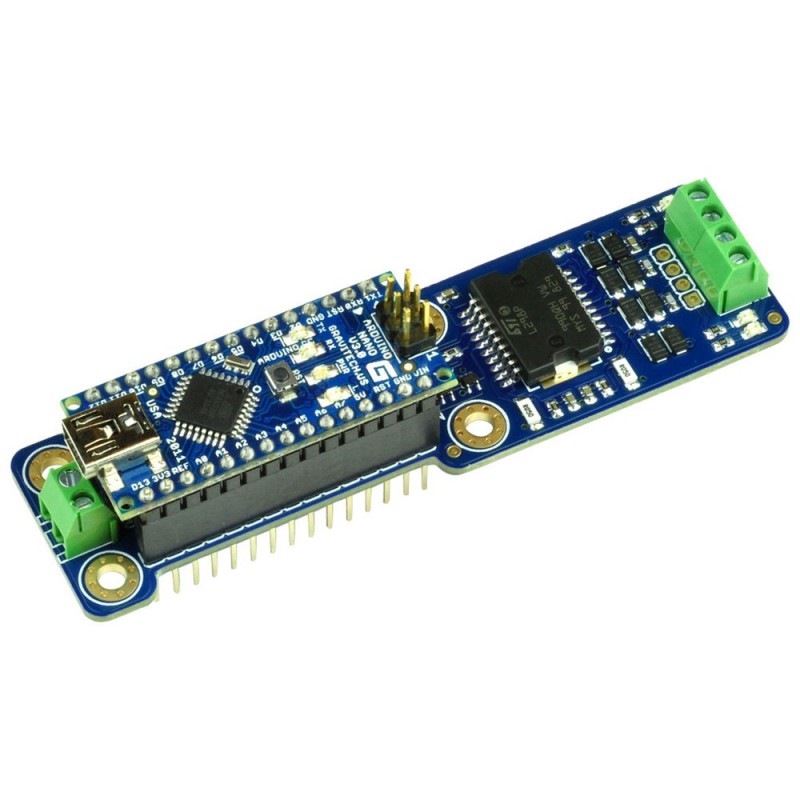

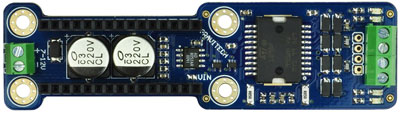

The Arduino Nano 7-12V, 2A Dual Motor Controller is an add-on module which allows you to control up to two DC motors at maximum of 2A/motor using the Arduino Nano USB Microcontroller v3. It includes breadboard friendliness for quick prototyping. This module comes with feedback back current sense circuitries for both of the motors independently. The design is featured with a high quality 2oz copper and gold plated PCB. The two high grade 220uF decoupling capacitors keep the noise low. The manufacturer uses 3.5mm pitch screw terminals for quick and easy motor connections. You can use up to 18AWG wire or 16AWG if you try hard. This module is based on the L298 Dual Full H-Bridge driver.



نظرات کاربران درباره Arduino Nano 7-12V, 2A Dual Motor Controller

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد Arduino Nano 7-12V, 2A Dual Motor Controller نظر می دهد.

ارسال نظر درباره Arduino Nano 7-12V, 2A Dual Motor Controller

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha
کد محصول AR-DUSH-46
وضعیت موجودی به زودی
