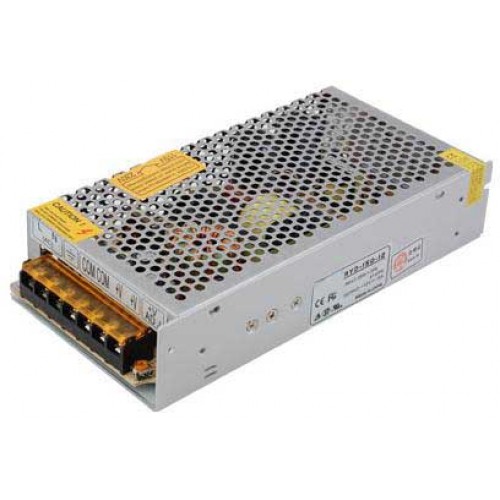

پاور سوئیچینگ 12 ولت 15 آمپر - منبع تغذیه صنعتی
Protection Short circuit / overload / over voltage
Input Voltage & Frequency Range : 85 ~ 264VAC/47 ~ 63Hz
Inrush Current : 20A @ 120VAC ( cold start )
Output adjustment range : ± 10% ( rated output voltage )
Overload : 105% to 200% ( rated load ) , since the resumption of
Overvoltage: 115% ~ 135% ( rated output voltage )
Short circuit protection : recovery
Output start time : ≤ 2S @ 120VAC ≤ 1.0S @ 230VAC
Output hold time : ≥ 10mS @ 120VAC, ≥ 20mS @ 230VAC
Dielectric strength : Input - Output : AC1500V, 1min
Input - Chassis : AC1500V, 1min
Output - Chassis : DC500V, 1min
Work environment : 10 ℃ ~ 50 ℃; 20% ~ 90% RH ( non-condensing )
