3.3V 600mA Wireless Charging Module



  • 3.3V, 600mA Wireless charging module
  • Stable power supply
  • Insulation Coil
  • Space-saving design

3.3V 600mA Wireless Charging Module

Description



  • 3.3V, 600mA Wireless charging module
  • Stable power supply
  • Insulation Coil
  • Space-saving design

The 3.3V 600mA Wireless Charging Module can be used for electronic equipments for close wireless charging or power supply. It consists of a transmitter and an insulation coil. It can serve as a replacement for the Wireless Power Supply with stable 3.3V output voltage and maximum 600mA output current. Its small size and insulation coil are more suitable to be used in wireless project.

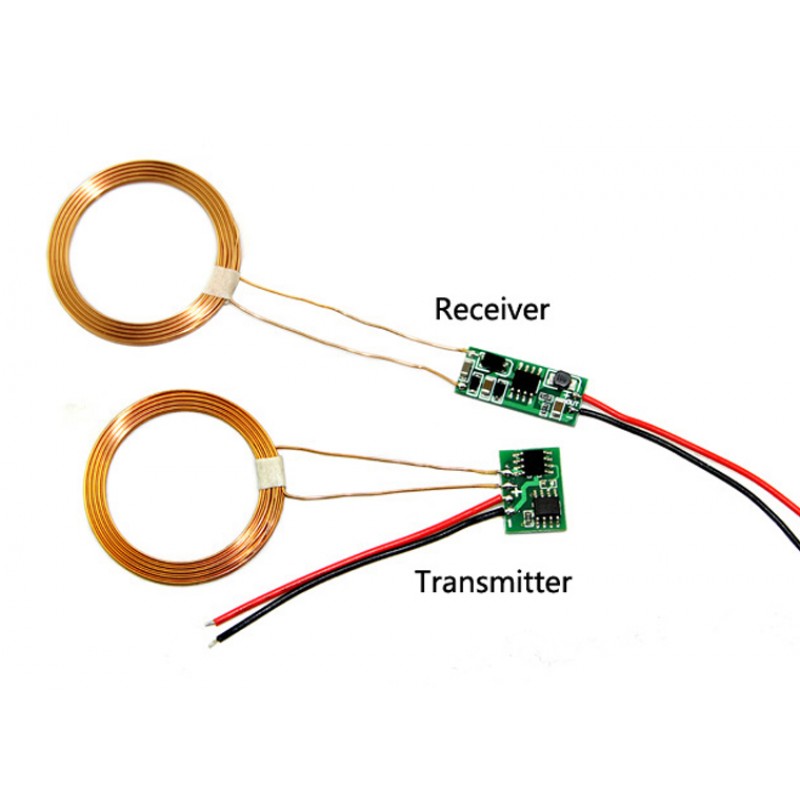

What's Included



  • 1x Receiver
  • 1x Transmitter



Specifications



  • Input voltage: 12Vdc
  • Input voltage(limits): 13.5Vdc
  • Output voltage: 3.3Vdc
  • Output current(maximum): 600mA
  • Transmitter coil inductance: 30uH
  • Transmit-receive distance: 1-20mm

Dimensions



  • Transmitter: 12mm x 7mm x 1mm
  • Receiver: 15mm x 10mm x 1mm
  • Coil diameter: 38mm
  • Coil height: 2mm
