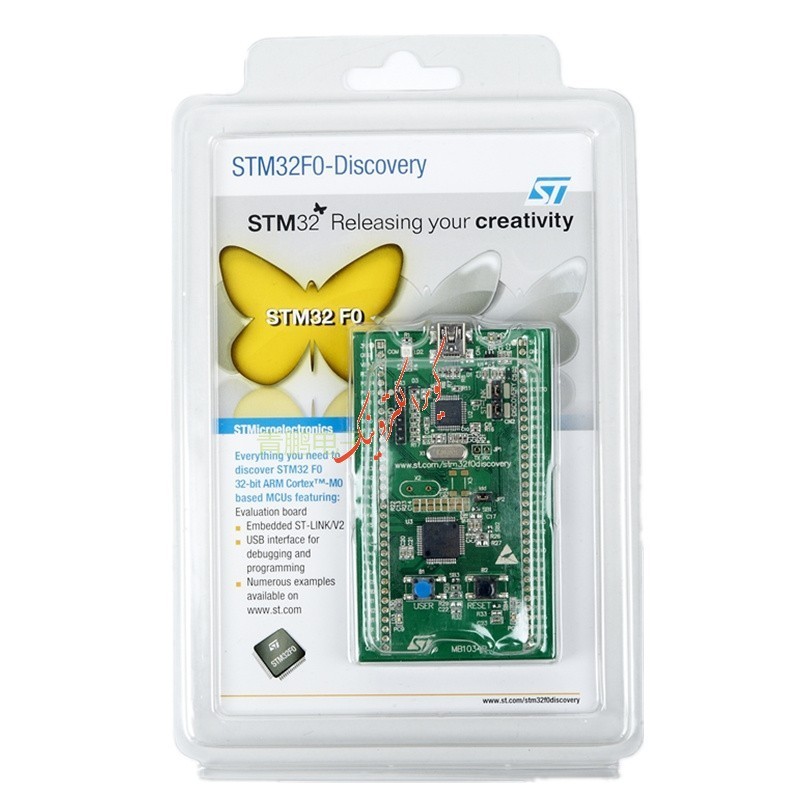

برد STM32F0DISCOVERY

این برد با هسته Cortex-M0 و آیسی STM32F051R8T6 می باشد همچنین روی برد یک پروگرامر و دیباگر St link



برد STM32F0DISCOVERY

این برد با هسته Cortex-M0 و آیسی STM32F051R8T6 می باشد همچنین روی برد یک پروگرامر و دیباگر St link



The STM32F0DISCOVERY helps you to discover the STM32F0 Cortex-M0 features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32F051R8T6, it includes an ST-LINK/V2 embedded debug tool, LEDs, pushbuttons and an additional prototyping board for easy connection of additional components and modules.

A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f0discovery to support quick evaluation and development.

    STM32F051R8T6 microcontroller featuring 64 KB Flash, 8 KB RAM in an LQFP64 package
    On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
    Board power supply: through USB bus or from an external 5 V supply voltage
    External application power supply: 3 V and 5 V
    Four LEDs:
    LD1 (red) for 3.3 V power on
    LD2 (red/green) for USB communication
    LD3 (green) for PC9 output
    LD4 (blue) for PC8 output
    Two push buttons (user and reset)
    Extension header for all LQFP64 I/Os for quick connection to prototyping board and easy probing
    An additional board is provided which can be connected to the extension connector for even easier prototyping and probing
http://www.st.com/web/catalog/tools/FM116/SC959/SS1532/PF253215#
