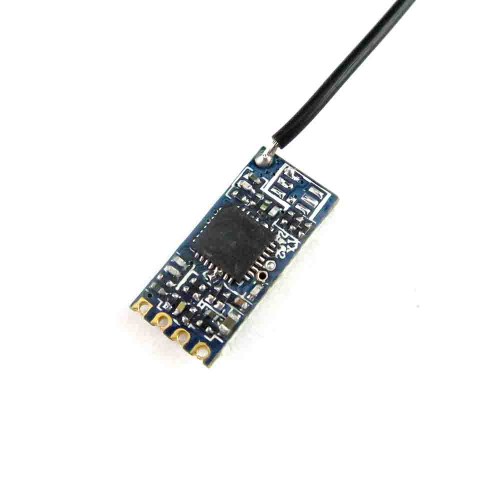

ماژول فرستنده صدا و تصویر وایرلس 8 کاناله 100mW با فرکانس 2.4GHZ

ماژول فرستنده صدا و تصویر وایرلس 8 کاناله 100mW با فرکانس 2.4GHZ

Features:
Product supply: DC 3.3-5V
Current consumption: 85mA
Transmit power: 100mW
Signal Channel: 8 channel setting
Product volume: long 2.2 cm * width 8 mm * thickness 2 mm (excluding antenna length)
Product features: Product phase-locked loop ..2.4G broadband frequency FM transmitter . complete transmission of uncompressed AV analog audio and video signals .
Mainly used for VCD / DVD / DVB / surveillance cameras analog AV wireless transmission of audio and video signals do .

CH1-2414 MHz
CH2-2432 MHz
Ch3-2450 MHz
Ch4-2468 MHz
CH5 2490 MHz
CH6 2510 MHz
CH7 2390 MHz
CH8 2370 MHz
