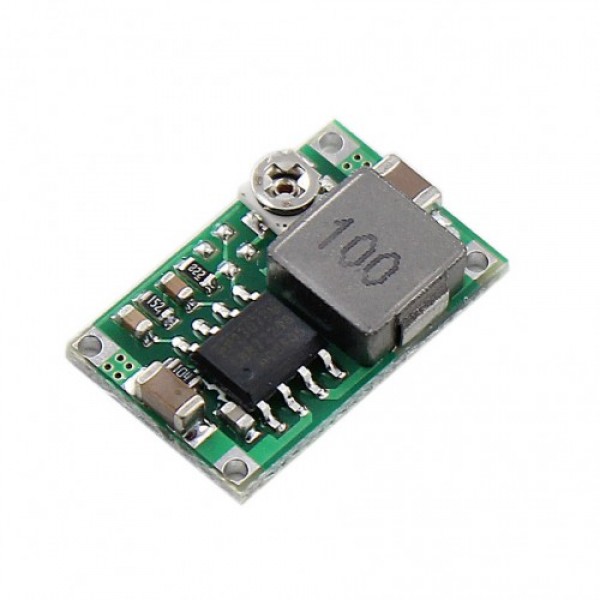

ماژول رگولاتور فوق کوچک DC به DC کاهنده Mini-360 HM دارای خروجی 1.8 آمپر
HM dedicated DC-DC step-down module (support 2S ~ 5S lithium polymer), DIY mobile power,
automotive power, communications equipment power supply,
all kinds of size and weight have a demanding occasion.
ماژول رگولاتور فوق کوچک DC به DC کاهنده Mini-360 HM دارای خروجی 1.8 آمپر
Application:
HM dedicated DC-DC step-down module (support 2S ~ 5S lithium polymer), DIY mobile power,
automotive power, communications equipment power supply,
all kinds of size and weight have a demanding occasion.
Module Properties:
Non-isolated step-down module
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Output ripple: 30mV (no-load)
Switching Frequency:340KHz
Output Ripple:30mV(no-load)
Load Regulation:±0.5%
Voltage Regulation:±2.5%
Operating Temp:-40 to +85
Size:17*11*3.8mm
