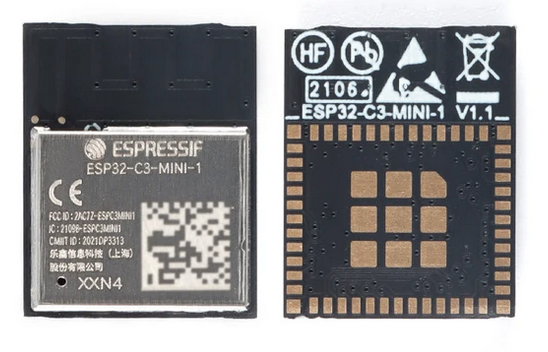

ماژول ESP32-C3-MINI-1-H4

ماژول ESP32-C3-MINI-1-H4

CPU and OnChip Memory
• ESP32-S2FH4 or ESP32-S2FN4R2 embedded,
Xtensa® single-core 32-bit LX7 microprocessor,
up to 240 MHz
• 128 KB ROM
• 320 KB SRAM
• 16 KB SRAM in RTC
• 4 MB embedded flash
• 2 MB embedded PSRAM (ESP32-S2FN4R2 only)
WiFi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 μs guard interval support
• Operating frequency: 2412 ~ 2484 MHz
Peripherals
• GPIO, SPI, LCD, UART, I2C, I2S, Camera
interface, IR, pulse counter, LED PWM, TWAI®
(compatible with ISO 11898-1, i.e. CAN
Specification 2.0), full-speed USB OTG, ADC,
DAC, touch sensor, temperature sensor
Note:
* Please refer to ESP32-S2 Series Datasheet for
detailed information about the module peripherals.
Integrated Components on Module
• 40 MHz crystal oscillator
Antenna Options
• On-board PCB antenna (ESP32-S2-MINI-1)
• External antenna via a connector
(ESP32-S2-MINI-1U)
Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature:
– 85 °C version: –40 ~ 85 °C
– 105 °C version: –40 ~ 105 °C
Certification
• RF certification: See certificates
• Green certification: RoHS/REACH
Test
• HTOL/HTSL/uHAST/TCT/ESD
1.2 Description
ESP32-S2-MINI-1 and ESP32-S2-MINI-1U are two powerful, generic Wi-Fi MCU modules that have a rich set of
peripherals. They are an ideal choice for a wide variety of application scenarios related to Internet of Things (IoT),
such as wearable electronics and smart home.
