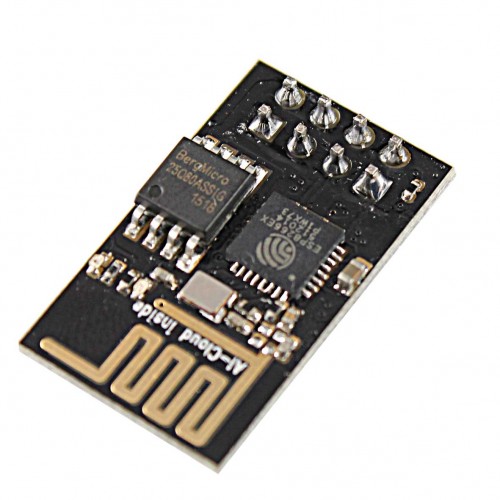

ماژول وایفای ESP8266 با آنتن PCB

This is WiFi serial transceiver module, based on ESP8266 SoC.


ماژول وایفای ESP8266 با آنتن PCB


This is WiFi serial transceiver module, based on ESP8266 SoC.

The SOC has Integrated TCP/IP protocol stack

ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

Corresponding Interface:
    SDIO 2.0, SPI, UART
    32-pin QFN package
    Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
    Integrated RISC processor, on-chip memory and external memory interfaces
    Integrated MAC/baseband processors
    Quality of Service management
    I2S interface for high fidelity audio applications
    On-chip low-dropout linear regulators for all internal supplies
    Proprietary spurious-free clock generation architecture
    Integrated WEP, TKIP, AES, and WAPI engines

Specification:
    802.11 b/g/n
    Wi-Fi Direct (P2P), soft-AP
    Integrated TCP/IP protocol stack
    Integrated TR switch, balun, LNA, power amplifier and matching network
    Integrated PLLs, regulators, DCXO and power management units
    +19.5dBm output power in 802.11b mode
    Power down leakage current of <10uA
    Integrated low power 32-bit CPU could be used as application processor
    SDIO 1.1/2.0, SPI, UART
    STBC, 1×1 MIMO, 2×1 MIMO
    A-MPDU & A-MSDU aggregation & 0.4ms guard interval
    Wake up and transmit packets in < 2ms
    Standby power consumption of < 1.0mW (DTIM3)


نظرات کاربران درباره ماژول وایفای ESP8266 با آنتن PCB

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد ماژول وایفای ESP8266 با آنتن PCB نظر می دهد.

ارسال نظر درباره ماژول وایفای ESP8266 با آنتن PCB

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با ماژول وایفای ESP8266 با آنتن PCB

ESP8266 وایفای wifi IoT
قیمت: 480,000 ریال
کد محصول TEL-WIF-14
وضعیت موجودی موجود
