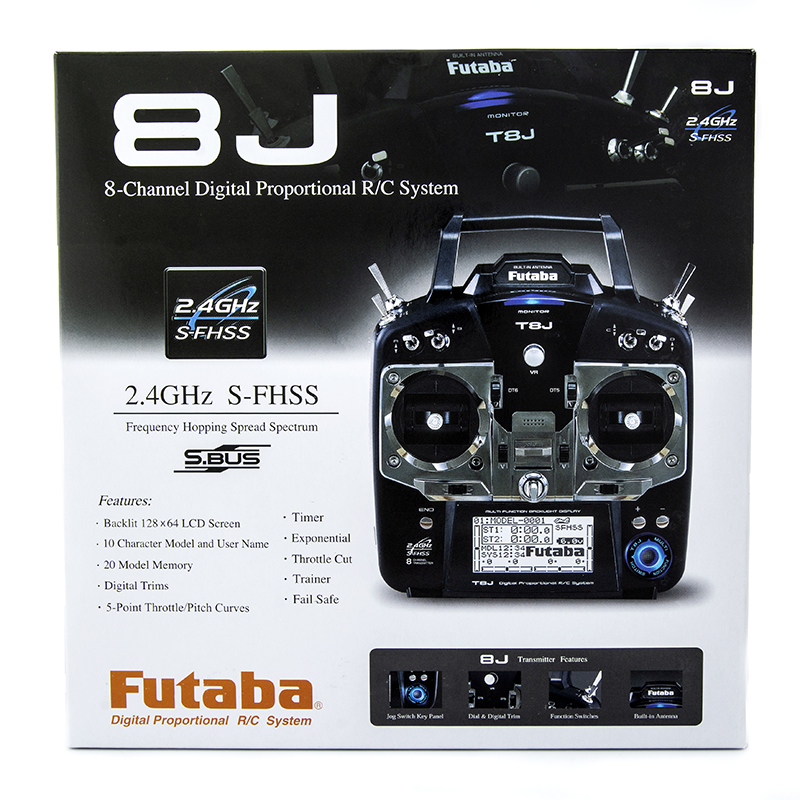

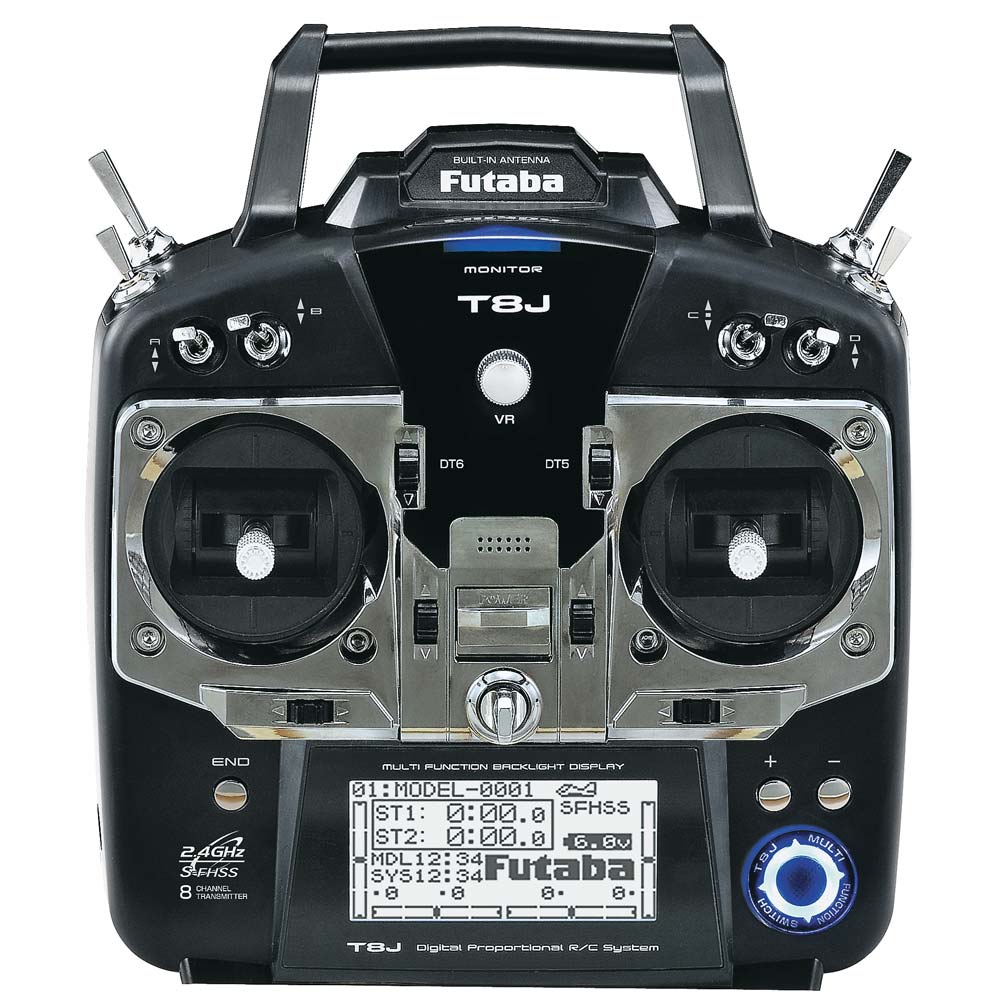

رادیو کنترل فوتابا T8J هشت کانال
دست دوم،
صحت عملکرد توسط کارشناسان فنی شرکت تضمین می شود.
به همراه رسیور، کارتن و بند گردنی فوتابا
رادیو کنترل فوتابا T8J هشت کانال
System features
-Futaba S-FHSS 2.4GHz security (also compatible with FHSS)
-Airplane and Helicopter modes
-20 model memory
-S.Bus-compatible S-FHSS receiver
-Wireless transfer of model data to and from other 8J transmitters
-10-character model and user naming
-Large (128 x 64 dot) backlit LCD display
-8 channels (one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers)
-Quick and easy programming using a jog dial and three buttons
-Servo reversing
-Sub Trim on all 8 channels
-Digital Trims
-Trim Step adjustability
-ATL (Adjustable Travel Limit)
-End point adjustment
-Dual Rate/Expo (any switch selectable)
Helicopter Functions
-Six programmable mixes (two with curves)
-8 Swash Plate types
-5 Flight Conditions (normal, idle up 1, idle up 2, idle up 3, hold)
-Throttle curve (five points/four curves)
-Pitch curve (five points/five curves)
-Throttle hold
-Throttle mixing (swash>throttle)
-Throttle/Needle mixing (5 point curve)
-Swash AFR
-Swash mixing
-Electronic swash ring
-Throttle delay
-Revolution mixing
-Hover pitch mixing
-Hover throttle mixing
-Gyro sensitivity/mixing
-Governor setting/mixing
-Hi/Lo Pitch mixing
-Offset mixing
-Condition delay
Airplane Functions
-Six programmable mixes (two with curves)
-Flaperons with differential rate
-Flap Trim
-Differential Ailerons
-V-tail mixing
-Throttle curve (5 points)
-Pitch curve (5 points)
-Throttle delay
-Throttle/Needle mixing (5 points)
-Elevon
-Ailevator
-Snap Roll
-Elevator/Flap mixing
-Airbrake/Landing
-Aileron/Rudder mixing
-Flap/Elevator mixing
-Gyro sensitivity
-Idle down (any switch selectable)
R2008SB S-FHSS 8ch Receiver specifications
Type: Full-range flight receiver
Modes: S-FHSS or FHSS
Features: High-voltage operation, frequency-hopping Spread Spectrum design, Dual Antenna Diversity, S.Bus compatibility
Voltage Input: 4.8V-7.4V battery or regulated output from ESC
Batteries: compatible NiCd, NiMH, LiPo, LiIon or LiFe
Dimensions: 0.98 x 1.69 x 0.55 in (24.9 x 42.8 x 14.0 mm)
Weight: 0.34 oz (9.5 g)
