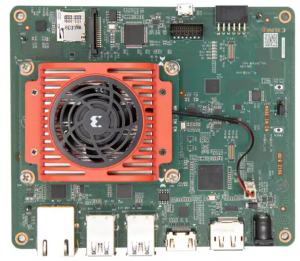

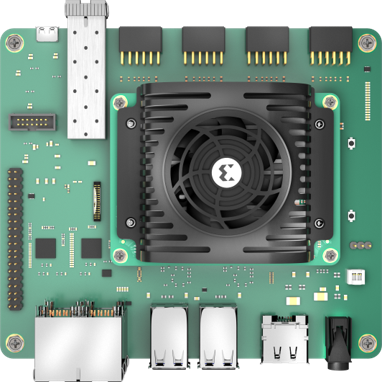

برد Kria KR260 Robotics Starter Kit با پردازنده Zynq UltraScale
سایر تصاویر محصول

برد Kria KR260 Robotics Starter Kit با پردازنده Zynq UltraScale

Kria KR260 Robotics Starter Kit(Zynq UltraScale)



برد Kria KR260 Robotics Starter Kit با پردازنده Zynq UltraScale

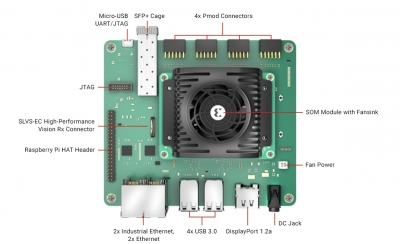

Parameter KR260
Device Zynq UltraScale+™ MPSoC EV (XCK26)
Form factor SOM + Carrier Card + Thermal Solution
Starter kit dimensions 119mm x 140mm x 36mm
Thermal cooling solution Active (Fan + Heatsink)
System logic cells 256K
Block RAM blocks 144
UltraRAM blocks 64
DSP slices 1.2K
Ethernet interface 4x 10/100/1000 Mb/s RJ-45s
1x SFP+ Cage
DDR memory 4GB (4 x 512Mb x 16 bit) [non-ECC] DDR4
Primary boot memory 512Mb QSPI
Secondary boot memory SDHC card
Device Security Zynq UltraScale+ MPSoC hardware root of trust (RoT) in support of secure boot. Infineon TPM2.0 in support of measured boot.

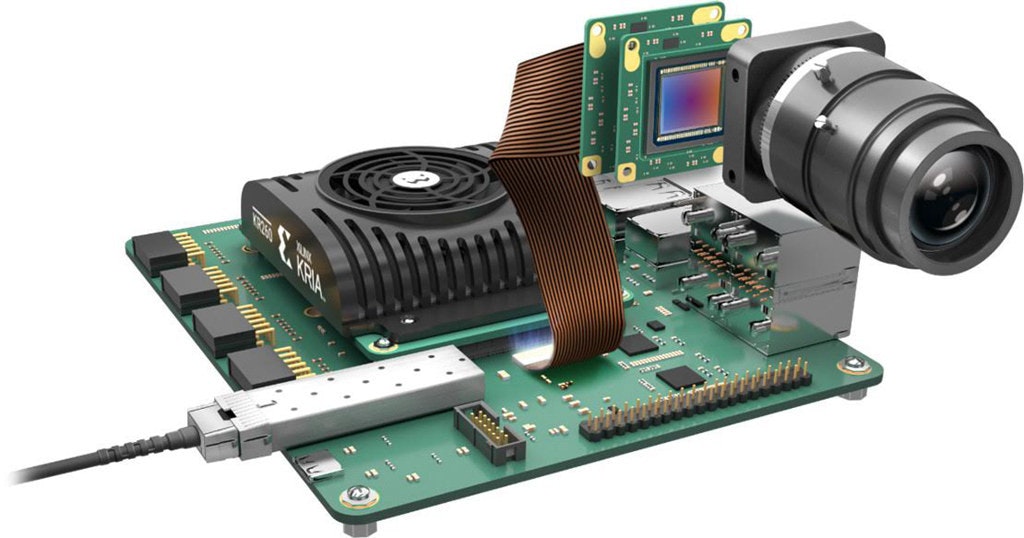

Video x1 SLVS-EC Gen2 x2 lane interface
DisplayPort 1.2a Output for 1920 x 1080 at 60Hz
I/O expansion x4 Pmod 12-pin interface
x1 Raspberry Pi HAT header with 26 I/Os
USB3.0/2.0 interfaces x4



نظرات کاربران درباره برد Kria KR260 Robotics Starter Kit با پردازنده Zynq UltraScale

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد برد Kria KR260 Robotics Starter Kit با پردازنده Zynq UltraScale نظر می دهد.

ارسال نظر درباره برد Kria KR260 Robotics Starter Kit با پردازنده Zynq UltraScale

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با برد Kria KR260 Robotics Starter Kit با پردازنده Zynq UltraScale

KV260 Xilinx KR260 KRIA FPGA Zynq UltraScale Ultra scale K26 SOM AI kit Kria KR260 Robotics Starter Kit Zynq UltraScale برد Kria KR260 Robotics Starter Kit با پردازنده Zynq UltraScale
قیمت: 479,000,000 ریال
کد محصول MINCO-FPGA-9
وضعیت موجودی موجود
