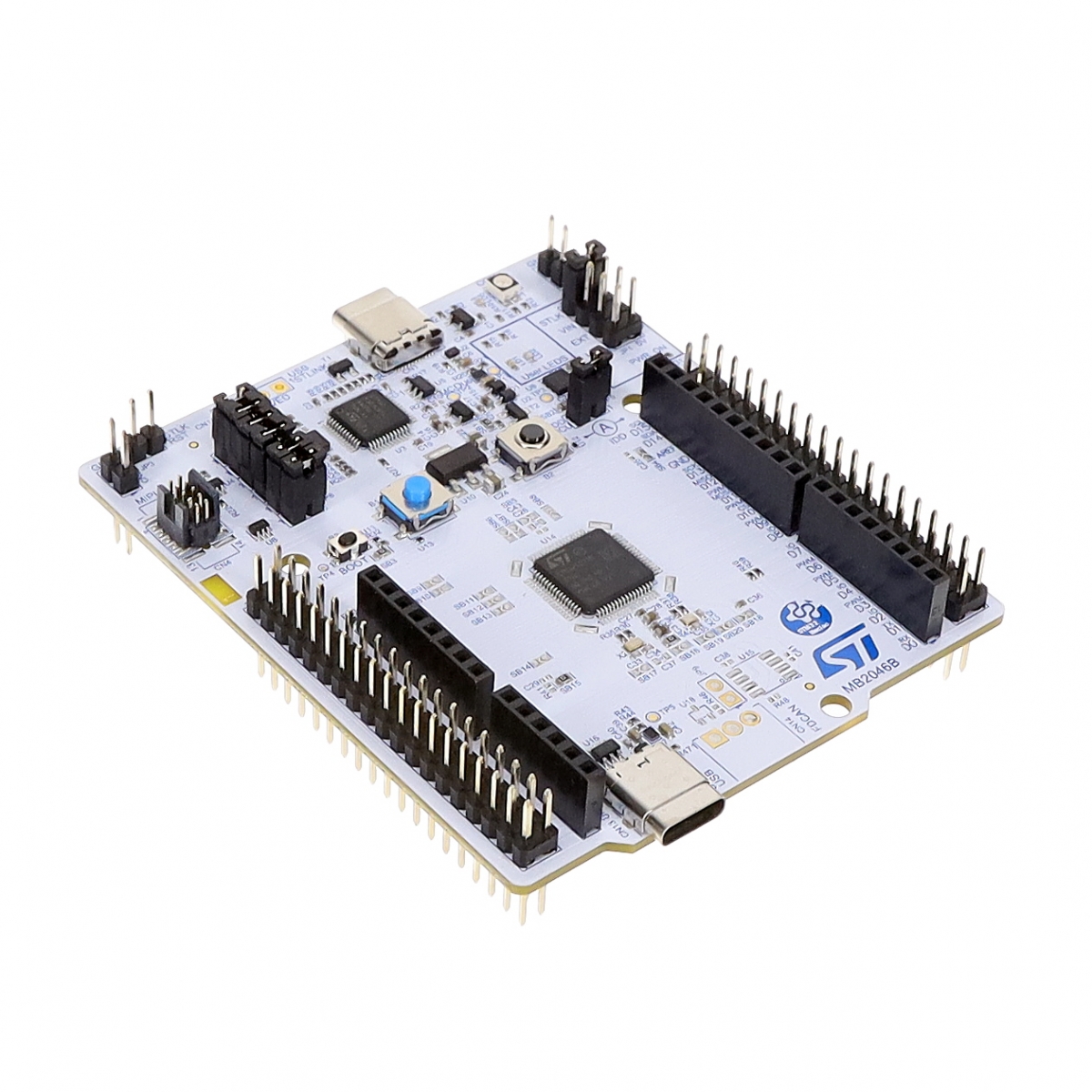

برد نوکلئو NUCLEO-C071RB

STM32 Nucleo-64 development board with STM32C071RB MCU, supports Arduino and ST morpho connectivity

برد نوکلئو NUCLEO-C071RB

All features

  • Common features
    • STM32 microcontroller in an LQFP64 or LQFP48 package
    • 1 user LED shared with ARDUINO®
    • 1 user and 1 reset push-buttons
    • 32.768 kHz crystal oscillator
    • Board connectors:
      • ARDUINO® Uno V3 expansion connector
      • ST morpho extension pin headers for full access to all STM32 I/Os
    • Flexible power-supply options: ST-LINK USB VBUS or external sources
    • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
  • Features specific to some of the boards (refer to the ordering information section of the data brief for details)
    • Second user LED
    • External or internal SMPS to generate Vcore logic supply
    • 24 MHz or 48 MHz HSE
    • User USB Device full speed, or USB SNK/UFP full speed
    • Cryptography
    • CAN FD transceiver
    • Board connectors:
      • External SMPS experimentation dedicated connector
      • USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK
      • USB Type-C® user connector
      • MIPI® debug connector
      • CAN FD header
    • On-board ST-LINK (STLINK/V2-1, STLINK-V3E, STLINK-V2EC, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port





نظرات کاربران درباره برد نوکلئو NUCLEO-C071RB

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد برد نوکلئو NUCLEO-C071RB نظر می دهد.

ارسال نظر درباره برد نوکلئو NUCLEO-C071RB

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با برد نوکلئو NUCLEO-C071RB

STM32 NUCLEO STM32C071RB Arduino NUCLEO C071RB نوکلئو
قیمت: 23,100,000 ریال
کد محصول MCU-ST-66
وضعیت موجودی موجود
برند ST
