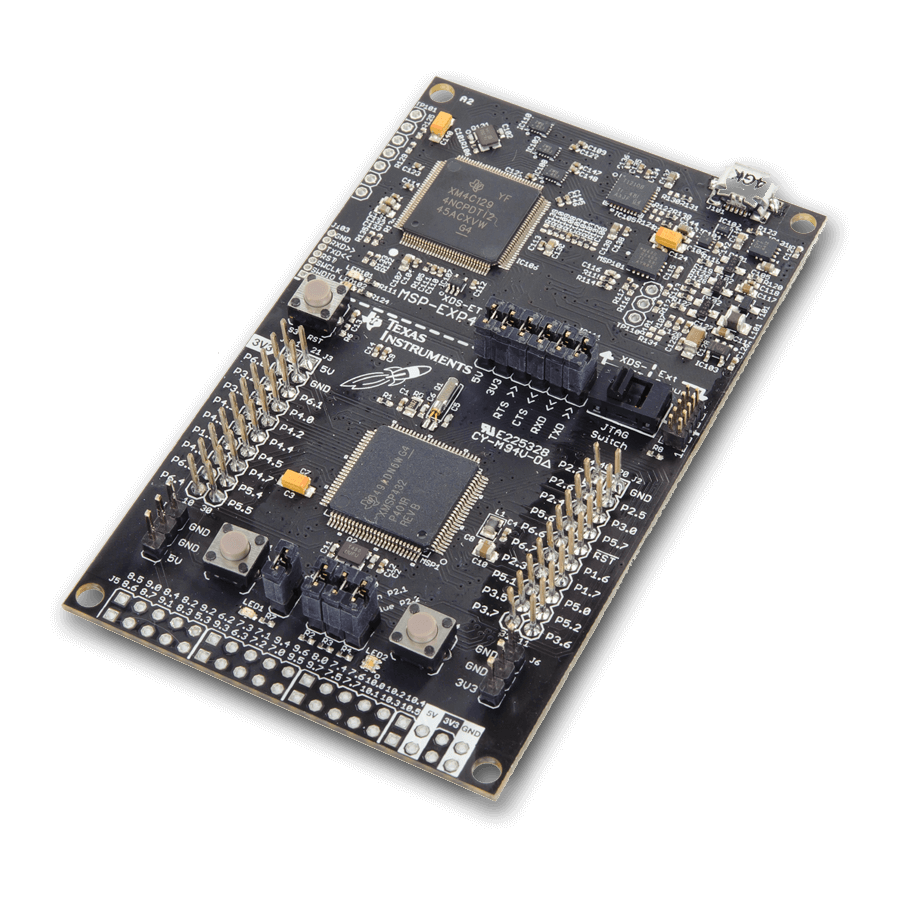

MSP-EXP432P401R
The MSP432P401 Launchpad features on-board emulation with EnergyTrace+ Technology, which means you can program and debug your projects without the need for additional tools, while also measuring total system energy consumption.
MSP-EXP432P401R
On-board emulation
The MSP432P401 Launchpad features on-board emulation with EnergyTrace+ Technology, which means you can program and debug your projects without the need for additional tools, while also measuring total system energy consumption.
BoosterPack-compatibility
All pins of the MSP-EXP432P401R device are fanned out for easy access. These pins make it easy to plug in 20-pin and 40-pin BoosterPacks that add additional functionality like wireless, capacitive touch and more.
Switches & LEDs
A general purpose switch, reset switch and two LEDs are provided on-board for quick development.
What's included?
- MSP-EXP432P401R LaunchPad includes everything you need to get started with MSP432 development!
- MSP432P401R low-power + high performance microcontroller
- Micro-USB cable
- Quick Start Guide
Why this LaunchPad?
- Highest performance MSP MCU with 48MHz ARM Cortex M4F processes data faster
- 95uA/MHz active power, 850nA RTC operation ideal for battery-operated, processing intense applications
- Advanced peripheral integration including a 14-bit 1MSPS differential SAR ADC and AES256 accelerator
Microcontroller Features
- 48MHz
- 32-bit ARM Cortex M4F with Floating Point Unit and DSP acceleration
- 256KB Flash
- 64KB RAM
- 24ch 12-bit ADC
- Comparator
- 4 16-bit, and 2 32-bit Timers
- Up to 4 I2C, 8 SPI, 4 UART
BoosterPack connector
40 pin BoosterPack connector with support for 20-pin BoosterPacks
