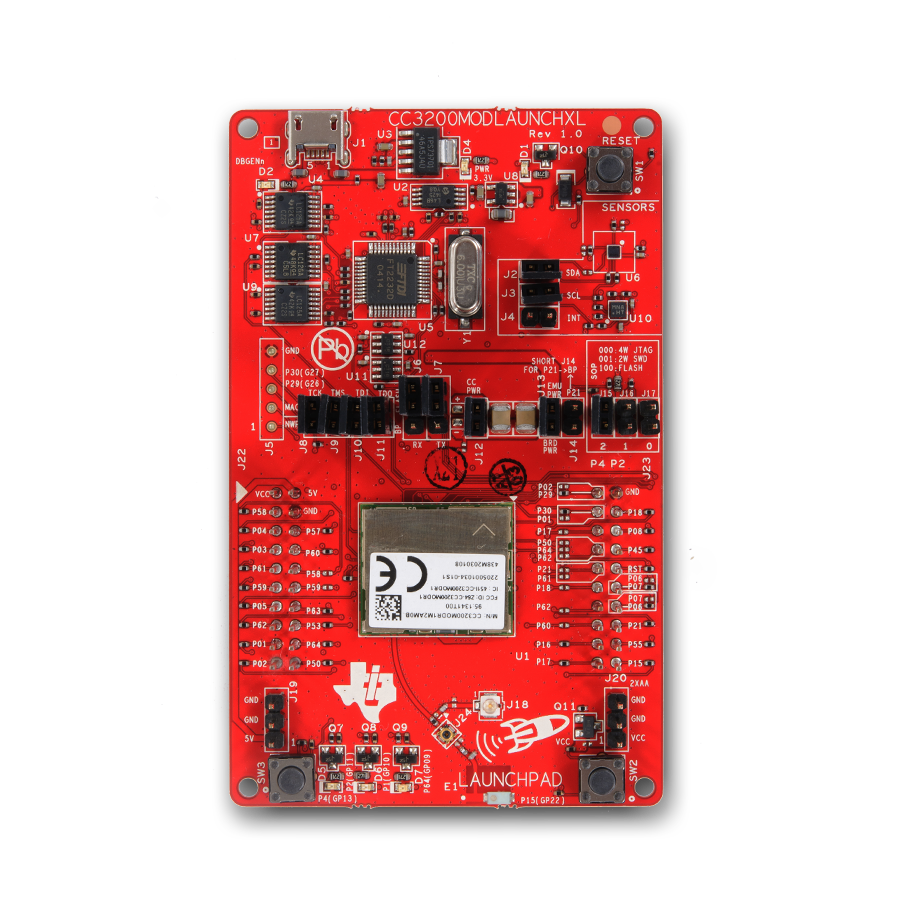

CC3200MODLAUNCHXL

The CC3200 SimpleLink Wi-Fi LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.

توضیحات
نظرات کاربران
برچسب ها

CC3200MODLAUNCHXL

On-board Emulation

The CC3200 SimpleLink Wi-Fi LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.

BoosterPack Compatibility

Two dual-gender, 20-pin stackable headers provide great connection options out of the box. These 40 pins allow you to add support for displays, sensors and other capabilities to your projects.

What's Included?

The CC3200 LaunchPad includes everything you need to get started with Wi-Fi development!

CC3200MOD-LAUNCHXL LaunchPad
Micro USB Cable
Online quick start guide

Device Features

FCC, IC, CE, TELEC and Wi-Fi Alliance Certified module
802.11 b/g/n Station and Access Point with fully integrated radio, baseband, and MAC
Single-chip Wi-Fi MCU module: Wi-Fi network processor + Arm® Cortex®-M4 MCU integrated into one chip including RF reference design
Embedded TCP/IP stack and Wi-Fi security transparent to the application MCU user
Internet protocols including mDNS, DNS, SSL/TLS in ROM + web server (HTTP) in Flash. Example codes include instant messaging (XMPP) and email (SMTP)
Embedded hardware crypto engine for TLS/SSL internet security
Flexible connection methods (provisioning) including access point mode, WPS, SmartConfig™ technology,and more
Low-power radio and advanced low-power modes
Peripheral set includes parallel camera, I2S audio, SDMMC, ADC, SPI, UART, I2C, and PWMs
20.5-mm × 17.5 mm LGA Package for Easy Assembly and Low-Cost PCB Design
Operating Temperature Range: –20°C to 70°C
