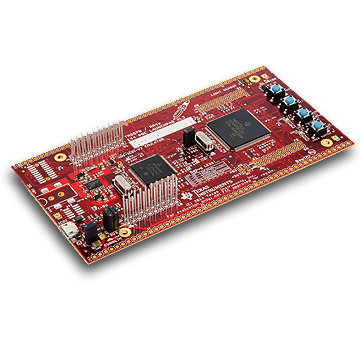

LAUNCHXL2-TMS57012
The Hercules LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.
LAUNCHXL2-TMS57012
On-board emulation
The Hercules LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.
BoosterPack-compatibility
Hercules LaunchPad features two 40-pin BoosterPack headers for connectivity to compatible boosterpacks that add additional functionality like wireless, displays & more.
Switches & LEDs
Two general purpose IO switched, reset switches & two LEDs are provided on-board for quick development.
What's included?
Hercules LaunchPad evaluation kit includes everything you need to get started with development on Hercules MCUs!
- Hercules LaunchPad TMS570LS12 version
- Micro-USB cable
- Quick Start Guide
Why this LaunchPad?
Features a Hercules TMS570LS12x series MCU designed for safety-critical automotive applications
BoosterPack connector
Two 40-pin headers
Microcontroller Features
- Automotive Grade MCU
- Integrated safety features to simplify applications requiring ISO 26262 ASIL-D and IEC61508 SIL-3
- ECC on Flash and RAM interfaces
- Built-In Self-Test for CPU and On-chip RAMs
- Error Signaling Module with Error Pin
- Voltage and Clock Monitoring
- 180MHz
- 1.25 MB ECC Flash
- 192 KB ECC RAM
- 64 KB ECC Flash for EEPROM emulation
- Two programmable High-End Timer Modules (N2HET)
- Two 12-bit multi-buffered ADC
- Three Multi-buffered SPI, Two SPI Modules
- LIN/SCI (UART)
- Enhanced Timing Peripherals for Motor Control (7 ePWM, 6 eCAP, 2 eQEP modules)
- GIO and Interrupt capable pins
- Three CAN Controller (DCAN) Modules
