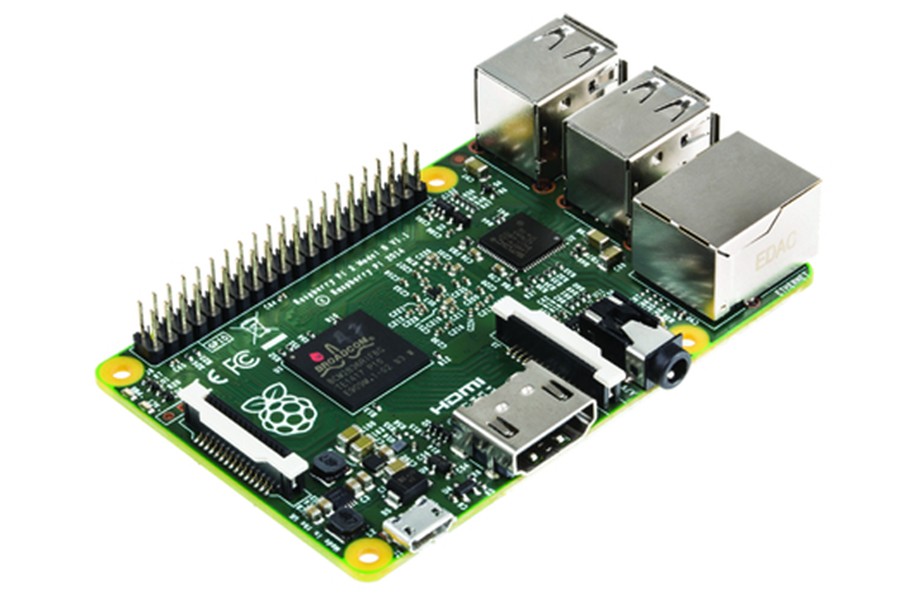

Raspberry Pi 2 Model B

Raspberry Pi 2 Model B

The Raspberry Pi 2 Model B is the second generation Raspberry Pi. It replaced the original Raspberry Pi 1 Model B+ in February 2015. Compared to the Raspberry Pi 1 it has:



  • A 900MHz quad-core ARM Cortex-A7 CPU
  • 1GB RAM


Like the (Pi 1) Model B+, it also has:



  • 4 USB ports
  • 40 GPIO pins
  • Full HDMI port
  • Ethernet port
  • Combined 3.5mm(0.14") audio jack and composite video
  • Camera interface (CSI)
  • Display interface (DSI)
  • Micro SD card slot
  • VideoCore IV 3D graphics core


Because it has an ARMv7 processor, it can run the full range of ARM GNU/Linux distributions, including Snappy Ubuntu Core, as well as Microsoft Windows 10.

The Raspberry Pi 2 has an identical form factor to the previous (Pi 1) Model B+ and has complete compatibility with Raspberry Pi 1.

We recommend the Raspberry Pi 2 Model B for use in schools: it offers more flexibility for learners than the leaner (Pi 1) Model A+, which is more useful for embedded projects and projects which require very low power.





Raspberry Pi or Arduino? One Simple Rule to Choose the Right Board
  • Broadcom BCM2836 900MHz quad-core ARM Cortex-A7 CPU
  • 1GB LPDDR2 SDRAM
  • 4 x USB2.0 Ports
  • Video Out via full size HDMI, 3.5mm(0.14") A/V Jack or Raw LCD (DSI) interface
  • Audio Out via 3.5mm(0.14") A/V Jack or Audio over HDMI
  • Audio In via CAMERA interface
  • Storage: micro SD slot
  • 10/100 Ethernet (RJ45)
  • Low-Level Peripherals:
  •     26 x GPIO
  •     UART
  •     I2C bus
  •     SPI bus with two chip selects
  •     +3.3V
  •     +5V
  •     Ground
  • Power Requirements: 600mA up to 1.8A@5V via MicroUSB or GPIO Header
  • Size: 87 x 58 x 19mm(3.43 x 2.28 x 0.75")
  • Supports Debian GNU/Linux, Fedora, Arch Linux, RISC OS and More!
