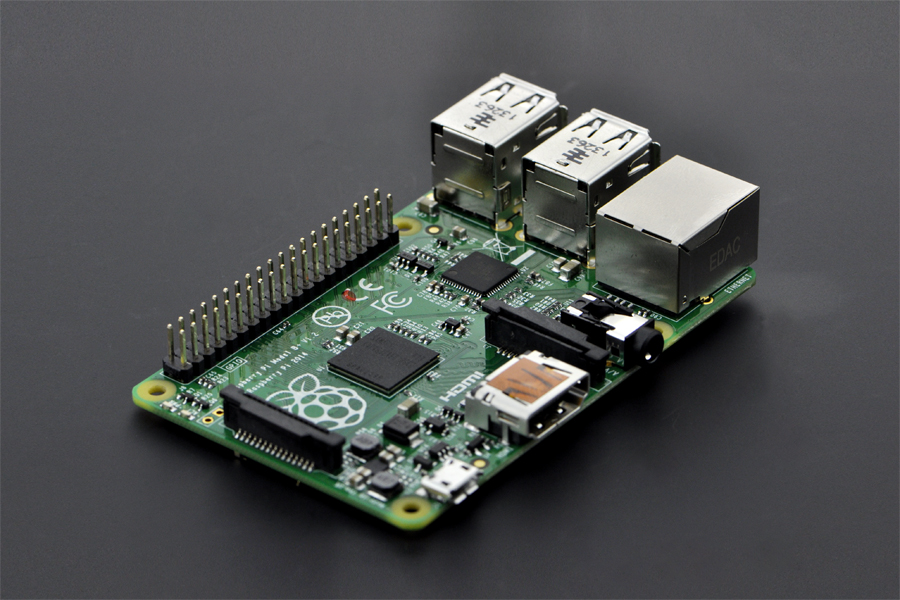

Raspberry Pi Module B+ 512MB RAM

Raspberry Pi Module B+ 512MB RAM



The Model B+ is the higher-spec variant of the Raspberry Pi. It was released to replace the original Model B in mid 2014. Comparing with Model B it has below features:

  • More GPIO: The GPIO header has expanded to 40 pins, while retaining the same pinout for the first 26 pins as the Model B.
  • More USB: It now have 4 USB 2.0 ports, compared to 2 on the Model B, and better hotplug and overcurrent behaviour.
  • Improved Micro SD: The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
  • Lower Power Consumption: By replacing linear regulators with switching ones we’ve reduced power consumption by between 0.5W and 1W.
  • Better Audio: The audio circuit incorporates a dedicated low-noise power supply.
  • Neater Form Factor: We’ve aligned the USB connectors with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes.


Raspberry Pi or Arduino? One Simple Rule to Choose the Right Board
  • Broadcom BCM2835 SoC
  • 700 MHz ARM1176JZF-S core CPU
  • Broadcom VideoCore IV GPU
  • 512 MB RAM
  • 4 x USB2.0 Ports
  • Video Out via full size HDMI, 3.5mm A/V Jack or Raw LCD (DSI) interface
  • Audio Out via 3.5mm A/V Jack or Audio over HDMI
  • Audio In via CAMERA interface
  • Storage: micro SD slot
  • 10/100 Ethernet (RJ45)
  • Low-Level Peripherals:
  •     40 x GPIO
  •     UART
  •     I2C bus
  •     SPI bus with two chip selects
  •     +3.3V
  •     +5V
  •     Ground
  • Power Requirements: 600mA up to 1.8A@5V via MicroUSB or GPIO Header
  • Size: 87 x 58.5 x 19mm
  • Supports Debian GNU/Linux, Fedora, Arch Linux, RISC OS and More!
